How can I embed a Google Map in HTML using an iframe?

General
1

I’m trying to embed a Google Map on my website using an iframe, but I’m not sure I’m doing it correctly. The map either doesn’t load at all or shows up with errors in the browser console. Can someone walk me through the correct HTML iframe code and any Google Maps settings I should check so the map displays properly on both desktop and mobile?

2

You are on the right track using an iframe. When it shows errors or stays blank, it is usually one of these:

  1. You copied the wrong URL
  2. You missed needed attributes
  3. Something blocks third party content or mixed content (http vs https)

Here is the correct basic way to embed Google Maps using an iframe.

  1. Go to maps.google.com
  2. Search your place or drop a pin
  3. Click the ‘Share’ button
  4. Go to the ‘Embed a map’ tab
  5. Pick the size
  6. Copy the iframe code from Google

The code looks like this:

Key points to check:

  1. Use the full embed URL
    Do not paste a normal maps URL like
    https://www.google.com/maps/place/…
    You need the embed URL that starts with
    https://www.google.com/maps/embed?pb=…

  2. Use https
    If your site runs on https, your iframe src must also use https.
    If your browser console shows “mixed content” or “blocked loading insecure content”, fix the URL to https.

  3. Width and height
    Set width and height explicitly.
    Example for responsive layout with CSS:

.map-wrapper {
position: relative;
width: 100%;
padding-bottom: 56.25%;
}

.map-wrapper iframe {
position: absolute;
top: 0;
left: 0;
width: 100%;
height: 100%;
border: 0;
}

HTML:

  1. Check browser console errors
    Common ones:
    • X-Frame-Options or “Refused to connect”
    Usually means wrong URL, or you tried to embed a normal maps link.
    • Content Security Policy errors
    Then you need to allow https://www.google.com and https://www.google.com/maps/embed in your CSP header.

  2. If you want an easier method

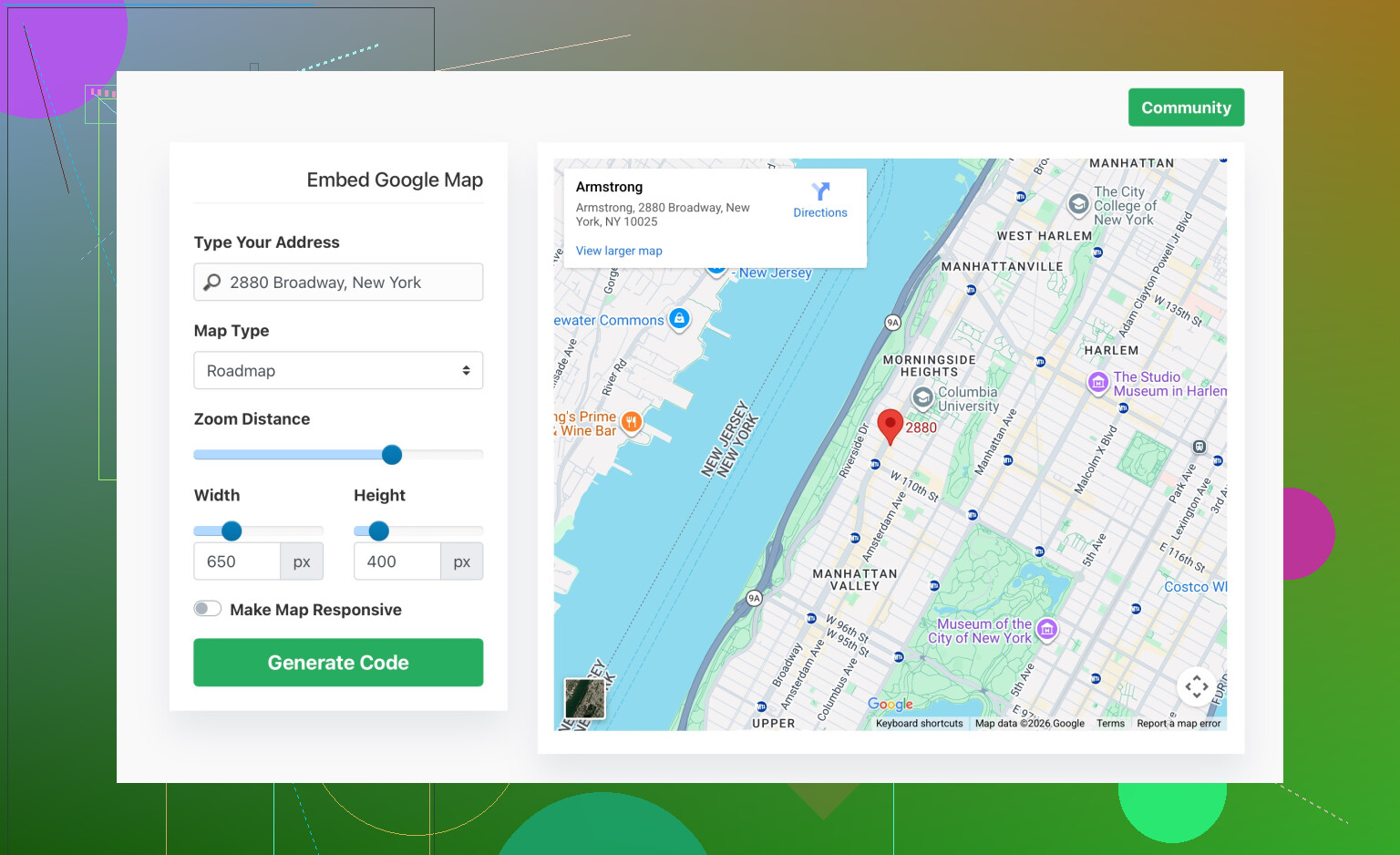

    Instead of building the iframe by hand every time, you can use tools like
    simple Google Map embed code generator
    You enter the address, adjust zoom and size, then it outputs ready-to-paste iframe code.

Checklist for you:
• Get the iframe code from the “Embed a map” tab only.
• Use https in src.
• Keep the full pb query string in the URL, do not edit it by hand.
• Give the iframe a width, height, and border:0 style.
• If you have CSP headers, allow Google domains.

Once you follow those steps, the map should render without errors.

How can I embed a Google Map in HTML using an iframe?
How can I embed a Google Map in HTML using an iframe?1536×938 271 KB

3

Most of the iframe basics are already covered by @espritlibre, so I’ll skip repeating the Google “Share → Embed a map” steps and focus on the reasons it still breaks and how to debug it properly.

1. Check the exact console error

When the map is blank, don’t guess, read the exact message:

  • Refused to connect or X-Frame-Options
    That almost always means:

    • You’re using a non-embed URL, or
    • Something is trying to load www.google.com/maps directly instead of the /maps/embed endpoint.

    In other words, if your src contains /place/, /search/, @lat,long, etc, instead of maps/embed?pb=..., that’s a red flag. Delete it and grab a fresh Embed URL from Maps.

  • Mixed content: blocked
    Your page is https and your iframe is http.
    Fix by changing:

    src='http://www.google.com/...'

    to:

    src='https://www.google.com/...'

  • Content Security Policy (CSP) errors
    If you see things like Refused to frame 'https://www.google.com/' because it violates the following Content Security Policy directive ..., then your server headers are too strict.

    You’ll need something along the lines of:

    Content-Security-Policy: frame-src 'self' https://www.google.com https://www.google.com/maps/embed;

    Exact syntax depends on your current CSP, but the idea is: allow Google in frame-src or child-src.

2. Check for “smart” frameworks messing with your iframe

This is one that bites people:

  • Some builders (WordPress page builders, certain JS frameworks, HTML sanitizers) strip attributes or even rewrite the src.
    • Make sure the long ?pb=... query is kept 100%. If the editor “cleans” it or truncates it, the map breaks.
    • Try pasting the iframe into a plain .html file on your server and open it directly. If it works there but not inside your CMS/template, your tool is the problem, not Google.

3. Don’t over-simplify the code Google gives you

I’ll actually disagree a tiny bit with the habit of “cleaning” Google’s code. A lot of people try to shorten the URL or remove attributes they “don’t understand” and suddenly stuff stops working.

For example, DO NOT:

  • Edit or shorten the pb parameter.
  • Replace it with your own coordinates manually.
  • Strip referrerpolicy or loading just to be “minimal” if you’re troubleshooting. Get it working first, then tweak.

If you want a super minimal test version, keep it like this:

<iframe
  src='https://www.google.com/maps/embed?pb=YOUR_FULL_PB_STRING_HERE'
  width='600'
  height='450'
  style='border:0;'
  allowfullscreen
  loading='lazy'>
</iframe>

Once that works, then you can get fancy with responsive wrappers etc.

4. Check for overlay issues (it loads but you can’t see/use it)

Sometimes the map is actually there, just hidden:

  • Use your browser dev tools, inspect the iframe.

    • If its computed width/height is 0 or it’s behind some position:absolute overlay with a higher z-index, you’ll just see a blank area.
    • Temporarily set:
      iframe {
  border: 1px solid red !important;
}
      to visually confirm it’s on the page and sized.

  • If you’re using flexbox or grid, make sure the parent container isn’t collapsed.

5. For troubleshooting, remove “smart” extras

Before you fight some responsive CSS, CSP, and lazy loading all at once, get down to basics:

  1. Create test-map.html on your server with only:
    <!doctype html>
<html>
<head>
  <meta charset='utf-8'>
  <title>Map Test</title>
</head>
<body>
  <iframe
    src='https://www.google.com/maps/embed?pb=FULL_STRING_FROM_GOOGLE'
    width='600'
    height='450'
    style='border:0;'
    allowfullscreen
    loading='lazy'>
  </iframe>
</body>
</html>
  2. Open that directly in the browser: https://your-site.com/test-map.html.
  3. If it works here but not on your actual page:
    • Compare CSP headers.
    • Compare extra scripts (ad blockers, cookie banners, etc).
    • Compare CSS layouts.

6. If you prefer generated code

If you don’t want to fiddle with Maps each time or your editor keeps mangling the embed, tools like
create fully formatted Google Maps iframe code
can save some time. You still need to respect HTTPS and CSP rules, but at least you’re less likely to typo the URL.

So, TL;DR:

  • Use only the true embed URL, untouched.
  • Read the exact console error and fix CSP / mixed content first.
  • Test in a bare HTML page before blaming Google Maps.
  • Make sure your theme or builder is not clipping the iframe to zero size or stripping parameters.

Once you go through those, the map pretty much has no excuse not to load.

1 Like
4

First thing I’d do is stop editing the iframe at all and instead look at everything around it. @mikeappsreviewer and @espritlibre covered the URL / CSP / mixed-content issues pretty well, but a lot of “map not loading” cases are actually layout, timing or extension problems.

1. Check if something blocks third‑party iframes

Common culprits:

  • Ad blockers / privacy extensions

    • Open your page in an incognito window with all extensions disabled.
    • If the Google Maps iframe suddenly appears, it is not your code.

  • Company proxies or filtering

    • If you test on a corporate network, try from a phone hotspot. Some networks block Google frames silently.

This is also why a super simple, static HTML test file is so useful. If it works there but not in your usual environment, the iframe code is probably fine.

2. Verify timing issues with JS-heavy pages

If your page is loaded and heavily modified by JavaScript:

  • Some frameworks re-render the DOM and accidentally strip the iframe node.
  • Others turn your map container into a component and your raw <iframe> gets removed or escaped.

Test:

<!-- Drop this as close to </body> as possible -->
<div id='map-holder'>
  <!-- paste the original Google iframe here, untouched -->
</div>

If it works here, but not inside your framework’s component/template, the framework’s sanitizer or virtual DOM is the problem, not Google.

You may need to:

  • Use the framework’s official “raw HTML” or “dangerous HTML” escape hatch.
  • Whitelist iframe tags in your sanitizer configuration.

3. Layout & stacking context problems

Sometimes the iframe is rendered but invisible or unusable.

Check with dev tools:

  • If width or height computed values are 0, the map cannot show.
  • If a transparent overlay is above it, all clicks go to that overlay.

Quick debug CSS:

iframe[src*='google.com/maps/embed'] {
  border: 2px solid red !important;
  z-index: 5 !important;
}

If you now see a red box but still no map, it is a loading issue.
If you do not see the box at all, a parent container is hiding it.

Watch out for:

  • overflow: hidden on parents with small heights.
  • Incorrect flex or grid settings that cause collapse.
  • Positioning tricks where a cookie banner or modal covers everything.

4. Do not over-abstract the iframe too early

I’ll slightly disagree with the impulse to immediately make it fully responsive with complex wrappers. During debugging:

  • Keep the native width / height attributes.
  • Avoid percentage heights until you are sure parents have a defined height.

Once it works, then move to a ratio-based wrapper like 16:9.

5. Content Security Policy nuance

@espritlibre already mentioned CSP in general, but one subtle detail:

  • Modern browsers prefer frame-ancestors for where your page can be embedded.
  • For iframes you load, it is usually frame-src (or legacy child-src).

If you use strict CSP, it is better to explicitly list Google frames there, not rely on wildcards. Too loose CSP can hide other security issues.

6. About external embed generators

Tools similar to the unnamed generator that @mikeappsreviewer referenced can be handy, especially for people who hate touching markup, but they have trade-offs.

Pros:

  • Save time if you generate many variants.
  • Often include responsive wrappers and copy-paste snippets.
  • Hide the messy pb parameter so you do not accidentally break it.

Cons:

  • You get another dependency between you and Google Maps.
  • If the tool changes its template or adds tracking parameters, you inherit that.
  • Debugging becomes harder because your code is no longer the exact snippet that Google Maps issues.

If you use such a generator, keep a plain “original Google snippet” test page in your project so you can always compare and isolate whether the generator is causing odd behavior.

Competitors like what @mikeappsreviewer and @espritlibre describe (manual embed via Google’s own interface) are more transparent: less magic, more control. The trade-off is that you need to understand a bit more about the layout and security environment of your site.

7. Practical debug checklist (non-duplicate)

When the map is broken:

  1. Open dev tools → Network tab → filter by “maps” and “iframe”
    • Confirm the src you expect is actually requested.
  2. Open dev tools → Elements → select the iframe
    • Check computed width/height, visibility, and if any transform hides it.
  3. Disable all browser extensions and test again.
  4. Save the problematic page HTML locally, open it directly from disk
    • If it works locally but not on your server, inspect server headers (CSP, X-Frame-Options from your own domain).
  5. If you are using a page builder or CMS:
    • Switch to a “raw HTML” block.
    • Paste the full iframe from Google Maps without modification.
    • Publish and test before adding any extra wrappers or CSS.

Once this bare-bones test works, you can safely reintroduce responsive styles, lazy loading, and whatever custom UI you want without blindly fighting a black box.
